Bristol Classic Car Show Report

Our stand at the show this year show was organised with the benefit of our experience last year and we asked for, and got, a better position. This was not a lot warmer than last year, but a small heater made things bearable and we were on one of the main through ways. As a result, we had a very busy time, possibly one of the best ever, with a steady stream of visitors to keep us occupied. I reckoned the time of year and the cold weather ensured that only proper enthusiasts attended. Coupled with the informal atmosphere and easy access this made for an enjoyable experience.

Derek Bentley had kindly volunteered to help with the setting up and he and Roger and I had booked into the same B&B as last year and had the usual welcome - very cosy - which softened the impact of doing a show in the middle of winter.

We had space for two cars (just) and had the usual Olympic, courtesy this time of Colin Ellis, and Roger Coupes Riviera. A small Gazebo and a couple of display boards completed the stand. We also took the opportunity to hold a committee meeting, thankfully in a heated part of the venue the organisers office.

Roger had been volunteered to give one of the talks/demonstrations by club exhibitors that went on each day. He showed how he made his paperweights in the form of Rochdale cars and I for one found it interesting and instructive. It was a pity that these demonstrations were not better publicised, as they were poorly attended even Rogers!

Many thanks to Colin and Roger for the display cars, and the other members who volunteered to help man the stand for cheerfully enduring the chilly conditions. See you there next year? Hope so.

Alan Farrer

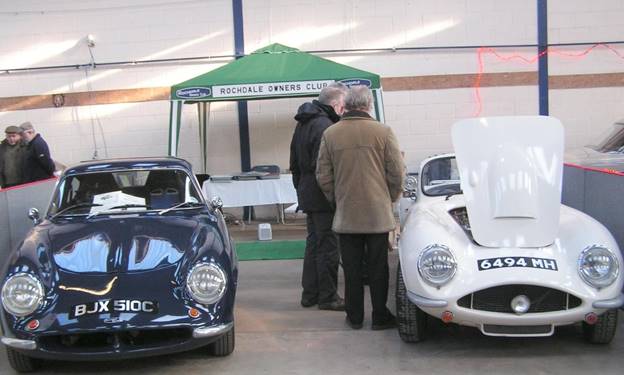

A quiet time on the stand

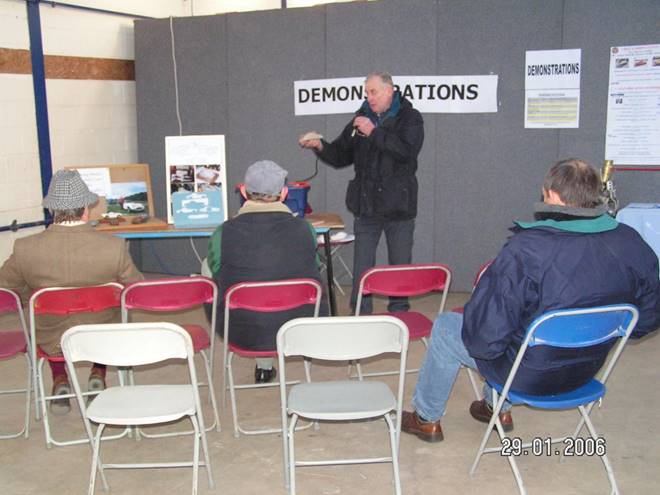

Roger had one of the biggest audiences


AGM - 2 April (see page 1)

South Midlands Monthly Classic Car/Bike Meet 12 March, 9 April, 9 May (see page 9)

Guy Stallards Spring Start Up 23 April (see page 10)

Stoneleigh 06 Kit Car Show - Sun 30 April/Mon 1 May (see page 9)

Prescott Hill Climb Open Classic Car Event 2005 - 13/14 May (see page 11)

Cheshire Kit and Classic Car Show & Rally at Capesthorne Hall 21 May (see page 4)

Classic LeMans - 7/9 July see website for details

Royal International air Tattoo, RAF Fairford, Glos - 15/16 July (see page 9)

Historic Specials Day at Burford - 13 August, organised by the FSCC (date to be confirmed).


Cheshire Kit and Classic Car Show & Rally.

Sunday May 21st 2006 (10am to 4.30pm)


We had a most enjoyable weekend last year, despite slightly iffy weather, so we hope to see even more of you and particularly your Rochdales this year, and that the weather will be good. The event is now open to classic cars so, if your Rochdale isn't ready yet and you have a classic, bring that along instead.

How can you help? We need helpers on Saturday afternoon (20th) at about 2.00pm to erect our HQ tent, place various signs around the estate roads, layout the public car park entrance, mark out the Kit Car display area, mark out stall holders pitches, fix signs "to the show" at strategic points around the approach roads, put out refuse bags around the display areas etc.etc. I don't know if the sheep will be returning this year but a trowel or shovel is a useful item to have with you just in case - many hands make light work.

After the setting up has been completed circa 5.00pm we shall be having a non-damaging driving test competition for the Rochdale Motor Panels Trophy, this being competed for each year at Capesthorne with a fun driving test competition in a Rochdale. For those of us who haven't got our Rochdales on the road, last year was a great opportunity to re-familiarise ourselves with the cars and demonstrate our judgement skills, thanks to the generosity of those who allowed us to take part in their cars.

For the evening we shall be going to the same pub as last year for a hot meal after which there will be a talk on a motoring topic. For catering reasons we must know how many are going to be present on the Saturday evening please let Roger Coupe (tel 01606 889384) or myself (tel 01332 690680) know if you are coming and how many - otherwise there is a risk there won't be a free meal for you!

On the Sunday your organisers and committee look forward to seeing as many of you as possible together with your Rochdale or Classic if you can bring it (unrestored cars on trailers are equally welcome!), to ensure we all enjoy a companionable club day. If you have any ideas for activities on the day or would like to help your club, please contact either of the organisers before the day. It gives us much more confidence if we are assured of a minimum number of helpers before the event.

On the day please report to the HQ tent when you arrive so that we know you are around and perhaps we may even have a small task for you! Remember this is your club and without the success of this event we would find it almost impossible to carry on financially.

The reputation of this Show continues to grow and grow, but we cannot maintain this reputation for the Show without YOU!

Finally, remember to bring this magazine with you to gain free entry to the show.

Look forward to seeing you there,

Ron Scarfe (Show Co-ordinator)

(NB Capesthorne Hall is on the A34 about 16 miles south of Manchester and 5 miles West of Macclesfield, and is 1mile south on the western side of the A34 after the A537/A34 crossroads known as Monks Heath, Capesthorne Hall caravan site 01625 861779 or in office hours 861221. Local accommodation: Macclesfield T.I.O. 01625 504114 or Congleton T.I.O. 01260 271095).

Chair Chat.

Well our Club has reached a milestone in its history.

This year marks the 25th anniversary of the formation of The Rochdale Owners Club.

Back on the 7th of June in the summer of 1981 at a Limited Edition car gathering on the Melbourne Loop at Donnington Park, a group of Rochdale enthusiasts put the wheels in motion to set up the club as we know it today. I wonder if any of our present members can recognize the cars in the photographs? It is interesting to note that the first club magazine was published in the October of that year. So maybe we should do something to recognize this milestone in our club's history. I think you might find this as an agenda item at the forthcoming AGM. So please come prepared with your ideas and suggestions.

Above and next page: Where it all started - Donnington Park 7 June 1981


This year got off to a good start for the club with the Bristol Classic Car Show. It was a very cold two days, but the company was very convivial and there was a lot of interest from the public. Many thanks to Alan for organizing the club stand, it's a date I will be fixing in my diary for next year, that's for sure.

On the home front there has been a little progress on "Sows Ear", but not much to see at first glance. Most of the time has been spent on widening the track to fill out the rather wide Mk 6 wheel arches. This has been achieved at the front by widening the split axle hinge points. That meant I had to remove the transverse leaf spring and fit coil springs similar to the set up on the Halifax Chassis on my Riviera. My next task is to prepare the drive unit. This will consist of a Ford 100E Engine fitted with an Elva O.H.I.V. head and Shorrocks Supercharger. The gear train will be a period Ford 3 speed box fitted with Buckler close ratio gears and a 4.7 back axle.

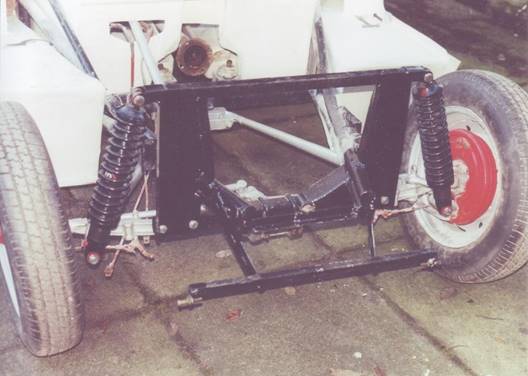

Sows Ear front end widened and converted to coil-overs


Coming back to club matters, the next date for our diary is the AGM on the first Sunday in April (April 2). It is always good to see so many members and their cars, even though the pre-Olympics are still very thin on the ground.

Then on May 20/21 we have the Cheshire Kit and Classic Car Show. As ever the Saturday is developing into a great opportunity for club members to get together in the afternoon to set up the show field and take part in a driving test. This gives members a chance to have a drive in different cars. Then in the evening we will once again be going to a local restaurant for a meal and a chat.

I think you will find more details of both the above events elsewhere in this mag. so I look forward to seeing you then.



Spares Note

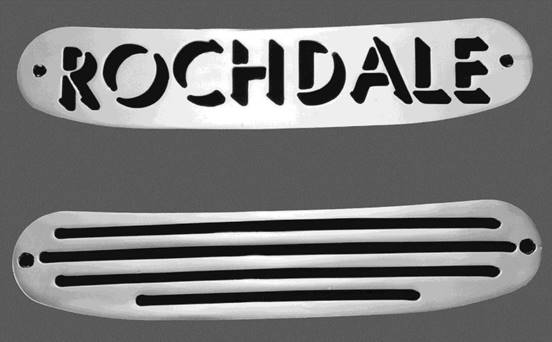

Club member Derek Farrow has had some grilles made to cover the air intake at the base of the windscreen. They are made in chrome plated brass and are pictured below. If you are interested, please contact me with a view to getting a batch made. Prices will be £15 for the slotted design and £20 for the Rochdale one.



Olympic Phase II subframes

There has been a lot of discussion recently about Phase II subrframes, as quite a few of them are reaching the end of their useful life, and it has been very strongly suggested that the club should be manufacturing replacements. At the recent committee meeting, there was a discussion covering the main points, summarised below:

       The originals frequently have different angles of camber and/or castor on each side. This was hopefully a fault of inaccurate construction rather than the original design.

       Richard Parker is on record as saying that if he was doing it again, he would design out the antidive by making the wishbones parallel

       The original design used tubular steel of dubious quality should a better quality be used for the tubes?

       The original design used spacers as a cheap method of both widening the track and allowing a change of pcd. This is unsound engineering. Alloy hubs are now available in any pcd required. However, have any cars experienced problems as a result of using spacers?

       On the inner ends of the wishbones, the Rochdales have 1/2" diameter threaded rod, whereas the original Triumphs used 3/8" bolts supported at each end. This means that the Rochdales experience greater wear on the bushes as there is no inner steel sleeve.

       There is no facility for camber adjustment on the Rochdale.

       If the club manufactures a subframe of any type, but in particular if it is significantly different to the original, where will we stand legally on product insurance? Will we need to get the design tested by an independent qualified engineer?

       Some members, notably Colin Breakspear and Ron Collins and Peter Bissett have produced subframes which have parallel wishbones, and use the Triumph uprights. These seem to work well.

       The original subframe jig has completely disappeared.

       There had been very little (ie 1) response to the Editors plea for input from the membership, although it was felt that if they were available, more interest would probably be forthcoming.

It was therefore felt, as a first stage, that we should measure as many original subframes as possible.

Derek Bentley has volunteered to produce a CAD drawing of the subframe from these measurements. Once we had the relevant dimensions, then we could decide whether to produce drawings for members to use, or make the subframes as a club spare, and if this option was chosen, decide what specification to use.

What do you think? Please let us know; come to the AGM and make your views known.



A Subframe Saga

Anyone owning a Phase 2 Olympic will know about rusting subframes and the associated repair problems (not only Phase 2 Russ! Ed). My Phase 2 is no exception. It was built in 1973 and I believe had been off the road since 1980. I acquired the vehicle from Tony Stanton in 2001 and was eager to restore it and get it back on the road. The strip down was hard work but went without problems. I knew that the subframe was not serviceable and managed to remove it for repair with the help of a Dremel and a mini angle grinder that I purchased for the task.

The subframe was in a worse state than I had first thought. Much of the lower portion had rusted almost to dust where it had been glassed in. My first decision was to repair it to original, rust treat it and glass it back where it came from. Talking to various people around the club made me realise that certain things would be better changed before refitting it. One of the changes that I decided to make was to dispense with the hub spacers. This meant that the wishbone mountings would need to be further apart. I cut the frame in two thinking that it would be a simple job to weld in repair sections of tube.

Because the frame was now in pieces with some of the lower half missing I made a jig to position everything correctly. A local machine shop made lower wishbone mounts for me and I put these in the jig along with the salvageable bits of the frame. Doubting my welding skills I entrusted the repair to the welding instructor at the college where I worked. I provided drawings and photos to help with the task. Months passed without progress and he told me that he was having trouble sourcing the materials. I retrieved the jig and bits and decided to think again.

It was now a case of giving the work to a specialist, but who? It needed to be someone close by or else I would have to trailer the body shell to someone like Keith Hamer. The project sat for some time while I pondered what to do. Retirement came for me with its associated tightening of the belt and I even thought of selling the car.

Fortunately I managed to get a part time job back with the college and they had a new welding instructor. I did not want to go through the same cycle as before with him but he encouraged me to invest in a TIG welder and have a go myself. I purchased a second hand TIG welder but it blew all the fuses in the house. I discovered that it was only suitable for an industrial power supply and changed it (adding significantly to my bill of course) for a more modern inverter unit. That worked well and I started practising on bits of scrap. When I felt competent enough I went out to source material for the job. The problem I found was that steel stock holders were not prepared to supply the small quantity that I needed. I resorted to scouring the area for steel fabricators using the sort of tubing I needed. I could not find any using round section tubing so decided to build the subframe out of square section which was available. (I must be lucky as there is a metal stockist near me who holds lots of round and square ERW tube and sheet and plate and is happy to sell small quantities - Ed)

After several materials forays I had a small stock of mild steel plate (3mm and 1,5mm) and two lengths of square section tube (20mm and 26mm). I was unsure of the strength of the tubing I had acquired, or of my welds, so decided to make extensive use of gussets in the frame. I made a start by joining upper and lower wishbone mounts using 20mm square tubing. I next joined left and right suspension mounts using 26mm square tubing. Because my jig was made of wood I tack welded bits in place then removed them from the jig for the finished weld. I fabricated the spring/shock upper mountings from 1.5mm plate and welded these in place. I now had all of the front suspension mountings in the correct relative positions but needing structure.

At this point I made another change of plan. There has been a lot of talk about bolting the subframe to the body shell rather than glassing it in. This has certain merits but would need some large plates incorporated in the design to spread the load. If I made the subframe out of plate I would not have to add anything to bolt to the body shell. I also felt more confident in welding a strong structure this way.

The subframe has to fit the shape of the body shell which is quite complicated so I spent a lot of time making cardboard patterns and doing mock ups to get things right. I made two more jigs to sit on the garage floor and hold the subframe in the correct position. The subframe is now finished and looks rather like the original design plated over. The next, and very tricky, job is to fasten it to the body shell.

My plan of action is to grind the body sections reasonably flat where the subframe is to be fixed then cut the body shell to form two flaps from the front part of the engine bay. I have allowed about 10mm clearance between the frame and the bodyshell, the idea being to position the subframe correctly using my jigs then move the loosened bits of bodyshell forward and bolt to the frame. After this I plan to layer up the front of the engine bay to secure and strengthen everything. If all works well I should finish up with a bolted in subframe giving the suspension geometry as designed.

I hope to have the wheels on the body by the summer so that I can roll it out of the garage and make some more dust preparing for general glass fibre repairs as needed. The shell is not too bad but there is a lot of patching up required.

Russ Collins

18 Feb 2006

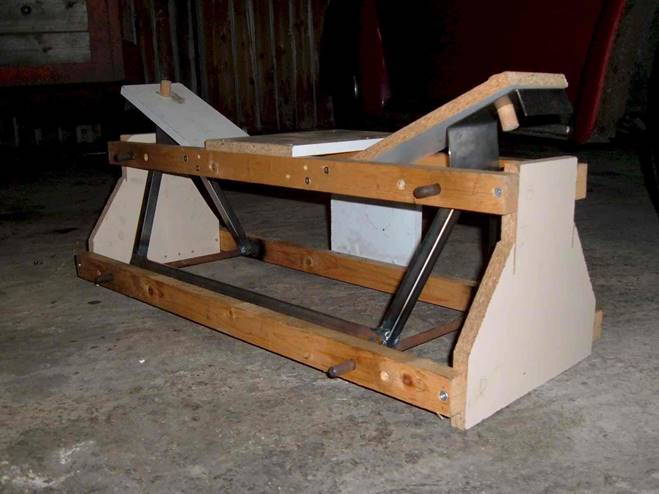

The jig with partially completed subframe Photos: Russ Collins

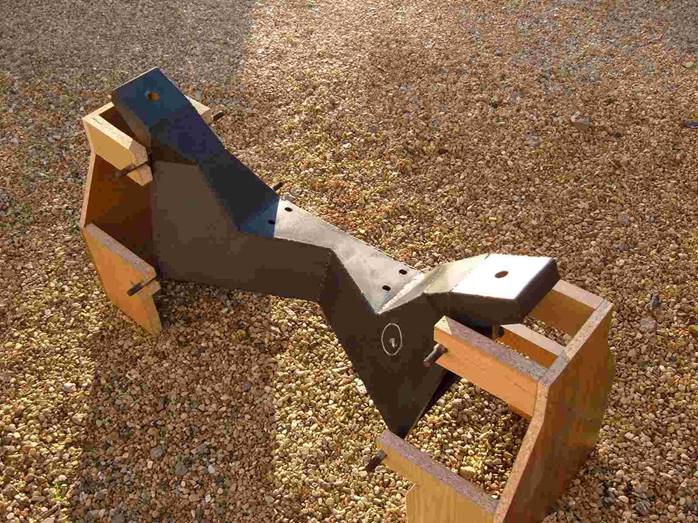

The completed subframe resting in its jig (The chalk circle marks the position of the hole for the steering column)

Lifespan of the Olympic Body/Chassis Unit

I have started yet another rebuild of my Phase 1 and would value members experiences with the bonded-in steel structures even if this was gained through scrapping an Olympic. The drawing shows the items of interest as they relate to the Phase 1 Olympic body/chassis unit (front suspension and steering mounting points omitted for clarity).

Many years ago I took the car off the road to repair the bottom section of the sub-frame that had all but disappeared. I now suspect the other tubing bonded into the GRP of the engine compartment although applying a magnet to these areas (A) indicates that some metal/oxide remains. Prior to repairing the sub-frame the car had been on (and off!) the road for fifteen years, eight of these in my possession. The corrosion was worst on the side where the battery had been sited, the weight of which had also caused some localised creep of undershield.

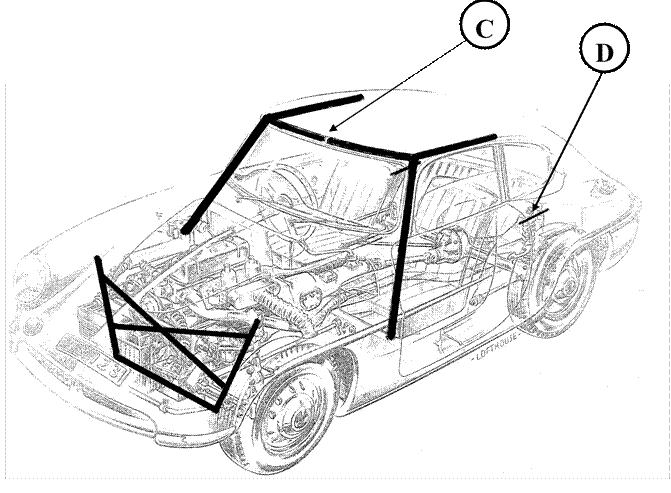

In addition to the above, there are the tubes (B) that reinforce the roof over the windscreen and doors together with the windscreen pillars. On my car the 1" tubing is exposed over the pillar sections and shows some rust. Also, is the tubing over the windscreen continuous or split (C)? I know from a previous issue of the club magazine that the Phase 2 tubular reinforcement is in two parts, presumably to facilitate bonding into the body whilst in the mould.

Other areas of concern are the rear turrets for the mounting of the coil-spring/damper units. There is a steel bar (D) bonded into the GRP at the level of each platform that puzzles me. Does any member know what purpose they serve, is it structural or was it an aid to laminating the platforms? Both these bars are heavily corroded from exposure in the wheel arches.

Water vapour/humidity will penetrate to the tubing over the years through porous sections of GRP and along the interface between GRP and tubing where bonding is poor (there is evidence of this at the windscreen pillars on my car). If the tube ends are not sealed adequately then the internal surface of the tubing will also be exposed to corrosion although this can be countered by timely spaying with WAXOYL or similar, if accessible. All this of course assumes that properly cured GRP is impermeable to water vapour at the thicknesses of laminate considered here. It is unfortunate from a preservation standpoint that a chemically resistant structure should have been reinforced with a material (mild steel) that was not, but a long lifespan may never have been the objective. I am aware that members have replaced the complete sub-frame with their own designs and there is a plan to offer a standardised item as a club spare for the Phase 2. Should future re-manufacture of the Phase 1 body/chassis unit ever be considered necessary then corrosion resistant metal tubing would need to be used. In the case of the sub-frame this could also be bolted to reinforced sides of the engine bay as an alternative method of location to bonding into the GRP.

Before I consider my next move, which could involve the drastic surgery that I would much rather avoid, any information on the above would be much appreciated.

Malcolm Lomax Phase 1 Olympic 20 February 2006


By Neil Roshier

Copyright: Race Performance and Car Constructor Magazine in Australia.

The air that we breathe is a fluid. A strange thought as we breathe it every day and every day we think of it as a gas! This is because a fluid does not have to be a liquid, yet liquids are fluids. confused yet? Stay with me and we will try and make this understandable and relevant!

An excellent description of a fluid is a fluid can be defined as: having particles that easily move and change their relative position without a separation of the mass and that also easily yield to pressure and are capable of flowing. So basically, for the purposes of this article if it can flow it is a liquid and we are very interested in flow for engines it is generally the more the better!

The trouble is, when we read articles about flows we often read about Laminar flow. This is where the flow is nice and stable and meets certain conditions (more on this later) and laminar flow is most often described as being layered (these are the laminas per se). With respect to intake ports this means that layer closest to the port wall is stationary (the sub-laminar layer). The next layer is moving quite slowly due to friction with the sub laminar layer and the next slightly faster again and the next one the same again etc.

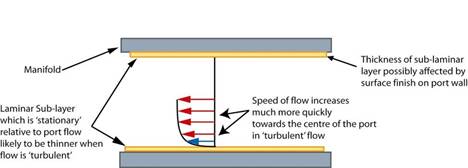

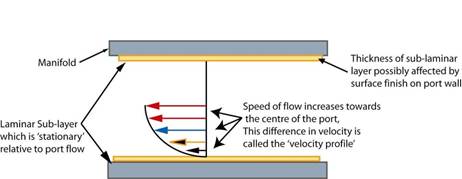

Eventually we have the layers that are moving as fast as they can (see image ►) It can be thought of as a series of concentric layers, a bit like a telescopic radio aerial. The outer most layer is the sub laminar layer and the inner most part the fastest flow with the other bits between being the other layers.

Why Laminar flow is desirable is simply down to the fact that it is faster, more stable and less likely to break away from the port walls when encountering a change in direction (such as a short turn radii prior to a valve) or imperfection (manifold/head joint). All of which means that more air (though this aspect changes if we are using Carburettors as it will not be just air due to the fuel in suspension) will flow through the same diameter port at a given airspeed. For us with an engine this seems very attractive as it will mean the engine will make more power, given all other factors being equal.

But what we must also acknowledge is that this is a nice neat explanation of laminar port flow is often misleading or worse factually incorrect! What we find in an intake port is that the laminar flow as described above has always been turbulent flow. This means that the velocity profile will be considerably different to what we might expect of a laminar flow (see image ►).

This change from Laminar to Turbulent occurs when the diameter of the port, the fluid velocity and the viscosity of the fluid (remember the bit about carburetion and fuel in suspension) creates Reynolds numbers higher than 4000.

So now you are probably asking yourself what is a Reynolds number?

The Reynolds number is the dimensionless combination of variables that is important in the study of viscous flows. The Reynolds Number is important in analyzing any type of flow when there is substantial velocity gradient such as occurs in the intake port as described above. The Reynolds Number indicates the relative significance of the viscous effect compared to the inertia effect. The Reynolds number is proportional to inertial force divided by viscous force. Reynolds Number can be expressed as:

Re = D.V.ρμ


D = Characteristic length (port diameter) μ = Viscosity ρ = Density V = Velocity

So if we consider that some definite numbers are: The intake port is 31mm

                     The viscosity of air (absolute) is often given to be .000017894kg/m/sec (at sea level).

                     Density of air is often given to be 1.225kg/m3 (at sea level and given temperature)

So what is then missing to work out the above equation is the velocity of the intake charge. Here we come across another decision: do we use the average velocity or do we pick the peak velocity?

However the average port flow is just that, an average. It is made up from the lowest flow through the port (e.g. when the piston is coming back up the bore and the intake valve is closing) to the highest flow rate (when the intake valve is opening and the piston is accelerating down the cylinder). Of course what we want is the most efficient intake system for the designed purpose.

The basic measure is: laminar if Re < 2300 transient if 2300 < Re < 4000 turbulent if 4000 < Re

So now when we consider the flow in the intake port, instead of having nice, stable concentric layers of flow that are relatively discrete from each other (Laminar flow), we now have Turbulent flow. This turbulent flow also has characteristics that are important for us to understand as far as intake ports are concerned.

1.                  Turbulent flow means energy transfer from one layer to another due to the chaotic nature of the turbulent flow itself, either accelerating or slowing the adjacent layer and increased surface friction.

2.                  The sub laminar (layer in contact with port surface) layer is thinner and less stable, thus it may be more adversely affected by local conditions such as poor manifold gaps, surface irregularities and flow separations due to too tight radii.

3.                  The progression to V-max flow occurs quicker in turbulent flow than for Laminar flow, though the V-max may be relatively lower (given the increase in pressure drop) than for Laminar flow (it is not possible to directly compare the overall flow of turbulent/laminar as they require different/incompatible conditions to exist).

4.                  Turbulent flow may be more disturbed by and may require greater time/distance to recover from any disturbance, e.g. a throttle plate at 45 degrees. It was suggested to me by an engineer who works in the field of Fluid Mechanics that often flows stabilize after a disturbance of 10 diameters (of the port diameter). So if the port had a 22mm diameter then flow would be stable and well formed again in 220mm.

5.                  Turbulent flows may under some circumstances have beneficial effects on fuel vaporization, though we cannot verify this from any independent source, so don't believe it yet!

To be continued.

Minilites, Minators and Minilights

Why are spares for some makes so much more expensive than others? One way and another, I haven't had much to do with Vauxhalls through my motoring career, and at £55 each quoted for hubcaps I wasn't about to change that. Crikey, I'd just bought a set of stainless Minor items for the GT for a fiver, so £220 to freshen up my Olympic wheels seemed a little excessive. What were Vauxhall bits doing there in the first place? With a Riley axle and Triumph-based front, they hardly seem the most obvious choice, but apparently this is what many Olympics received around 1964. Couple the prices with the fact that the Vauxhall wheels were looking decidedly skinny, and I decided to look round for alternatives.

Classic style Minilites look good on most old cars and similar styles have been offered by a number of manufacturers over the years. I believe that the original Tec-Del firm had gone out of business sometime in the 70s/80s and other firms got round the copyright issue by marketing their own wheels as Minilights (note the spelling) - the subject of legal proceedings at one stage. Add in the re-forming of Tec-Del and similar products such as KN Minator and you now have quite a buyers market in the UK. I was very pleasantly surprised by some of the quotes, and eventually went for 5x13 Midget wheels from Midland Wheel Services. In Anthracite (dark silver) and with a polished alloy rim they looked the business, and at £200 including centre caps, chrome nuts, VAT and postage I didn't take long to make up my mind. I figured that with a 5" width they would fill the arches better than the originals and was assured that with an ET20 offset they fitted a Midget easily I kept my fingers crossed as the tyres were changed.

(ET20 means the mounting flange is 20mm outboard of the wheel centre line Ed)

No problems at the front they really improved things but at the back clearance was much more limited, though I thought at first I had just got away with it. Not so. It became apparent that the tyres were rubbing as the suspension came up, and I tried grinding away at the returns on the arches. Much of this didn't go amiss the job had clearly been very crudely tackled when the shell was new, and I did manage to get clearance just on the left hand side. On the right, however, the problem persisted with the tyre (155/80 Michelins) scuffing the rear of the arch where the body tapered inwards. Further grinding away at this point eventually broke through to the outer surface of the body and I built up the contours with extra layers of fibreglass. This still wasn't a good idea, however, as the tyre continued to wear away on full bump, which seemed odd a close look at other Olympics didn't reveal any problems, with lots of clearance. Now in the overall scheme of things 5" isn't a very wide wheel, and it seems the problem lay in the ET 20 offset. I had never heard of this before I bought the wheels, but it apparently represents a distance of 20mm from the mounting surface to the centre line of the wheel and was the standard distance used by each of the manufacturers I spoke to any more would be likely to foul on disc callipers, I was told. There looked to be lots of clearance on the Olympic, however, and I did call MWS again to discuss the possibility of shaving a little off the mounting surface of my own wheels but surprise, surprise they didn't want anything to do with it, and no, they didn't sell wheels with any other offsets. Hmm

Yes, I know it's possible to flare the arches but I really didn't want to and neither did I want to cut them away as has sometimes been done. Thoughts of subtle modifications to follow the original lines while spacing them out a few mm were rejected because of the amount of work involved and I eventually decided on replacement. Both Tec-Del and KN were more helpful here, and I eventually took the plunge with a further set of Minators to replace the originals - this time with an offset of ET30. The financial side was a little less favourable this time, with a total bill, including postage of around £256 for the four, including centre caps, postage and VAT but no nuts.

If 5" doesn't sound very wide, then a difference of 10mm sounds even less significant, but was nevertheless enough to do the job. The arches are now cleared even on full bump, and there is still lots of room on the inside 1960s callipers are much less meaty than later items, it seems.


It was very difficult to see any difference between the original MWS and new KNs without careful measurement, though it is apparent that the wheel nuts are less heavily recessed on the KN items. I would advise anyone thinking along the same lines to check any wheels very carefully before taking the plunge I think even 5" width may be possible with more offset, the problem being the distance measured in the opposite direction between the brake drum and the surface of the tyre. This can be easily found using a combination-type square as shown and laying the wheel, face down, on a flat surface. The KNs + Michelins give a reading of almost exactly 2 much more and you are asking for trouble. Of this, the tyres account for about 1/4, giving 1 for the bare wheel. Sorry to mix the units up but hey, tyre manufacturers have been doing it for years.

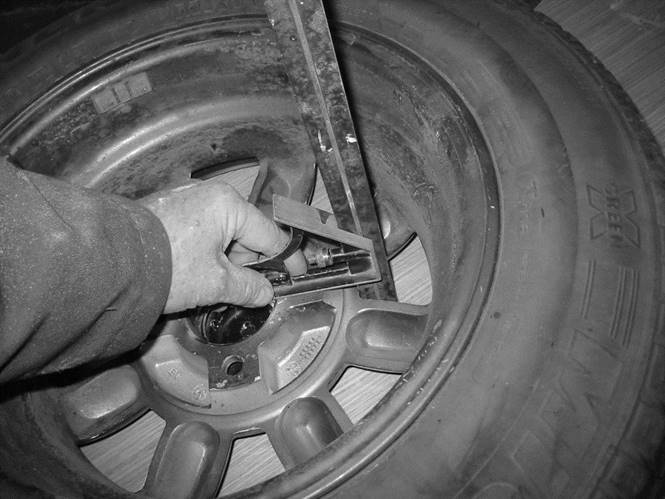

Using a combination square on the back of the wheel to measure the protrusion of the outside edge of the tyre from the mounting surface (brake drum). Any more than the 2" seen here is pushing your luck. All photos by Les Brown

Now for the silly bit. After observing a lull in E-bay prices going up to Christmas I polished up the Minilights and took a nice set of pictures before putting them for sale in January. This started something akin to one of those Piranha-type feeding frenzies that you used to see in James Bond films with 11 bids going in with quite a few above the original price of the items! I eventually came away with £221, including postage (but no wheel nuts) and I was left wondering why a) I hadn't done it months before and b) folks don't check on brand new prices before they start bidding. But I'm not complaining!

To summarise, Riley axle + 5x13 + ET20 = BAD

and Riley axle + 5x13 + ET30 = GOOD

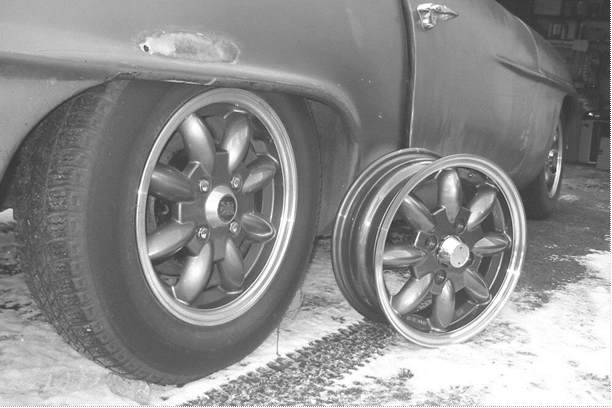

The back of the rear arches is the problem area - you may just see the wear on the outside edge of the tyre. New Minator on the right.

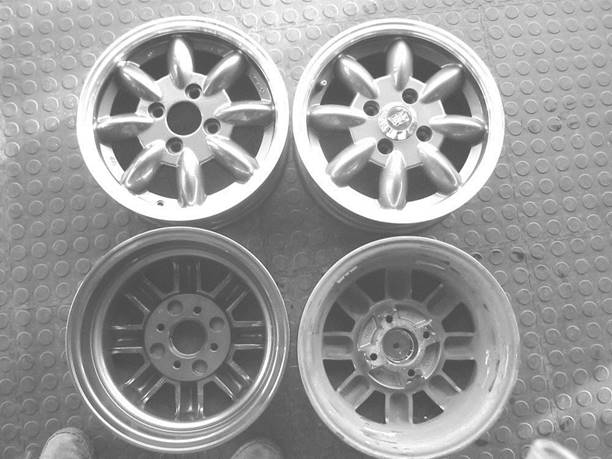

Original MWS Minilights on the right, replacement KN Minators on the left - hard to spot any difference.


Malcolm McKay

Winter's always a quiet time and I warned Alan I didn't have much to say this time but I'm glad to say that now I've put it all together, there's still been plenty of action on the early Rochdales front!

Aussie update

First to respond to the publication of the Register in the last issue was Gordon Cowley in Australia thanks, Gordon, for bringing us up to date with your very fine modified GT. Gordon writes:

The registration number is to be GT 1172. The Chassis number is ROC 1172. The people here who had to approve the import kept asking for a chassis or VIN number, which in my case did not exist. I told them that, but that was not good enough. I invented the chassis number and was then allowed to import the Rochdale GT.

I have a modified Bowden Chassis with a 105E rear axle held in with five links and coil-over shockers. The Bowden IFS has been removed and replaced by a Ford Ten beam axle with Mk1 Cortina hubs and disc brakes. I have a Datsun Sunny steering box and a Mazda 808 steering column. I used the top backing plate bolts and the specially made caliper bracket to bolt a Mk1 Escort steering arm in place for the draglink to work with. The drag link sits over the radius rod on the LHS. The tie rod sits under the radius rods in the usual place.

I will be using the 100E long engine that I initially used in my 1952 Anglia Tourer. The Tourer now has a worked Ford Ten engine. Both the engines have a modified camshaft and an external oil pump. I will be using a Willment OHIV head. I have a split braking system and no room to fit the twin Solex 35PHH carbies that I bought, as the master cylinders are in the engine bay. I will be using one of the carbies with a modified single DCOE Weber Cortina 1500 inlet manifold.

I have a 100E gearbox complete with Laycock electric overdrive and the Rochdale GT will run on 13in Mk1 Cortina wheels. I can only use the o/drive with second and top gear. I have a reverse light switch as well on the gearbox and will fit the reversing lights to go with that.

I have used a Mk1 Cortina fuel tank and the spare tyre fits on top of that. They are both behind the rear axle. I have made up a propeller shaft hump and a cover for the gearbox and remade the engine bulkhead. I have used fibreglass sheet, plastic body filler and aluminium strip and angles to hold it all together. I need another layer of glass over the bottom, interior and engine bay before paint and final assembly.

I have a three-hole instrument binnacle from a Mk1 Cortina GT and will use an original Mk1 Cortina tacho and fuel and temp cluster with a modern electronic VDO speedo. I have a pulse driver on the gearbox and you can change the number of pulses per kilometre to get the speedo correct for speed and distance. I have no gearbox cable or gearbox drive ratios to worry about. Suzuki vans and small four-wheel drives have good nylon-bushed bits to make remote three-speed and reverse shifters. I have internal door hinges, electric window lifts (easier to fit than a hand winder) and Mazda 808 door locks and recessed door handles. The interior may just be paint!

I have gone back to work, Mon to Fri, 8 til 5, so it is now hard to find the time to finish my project. I have always been a tinkerer and improver of cars, so I have no qualms about making my Rochdale GT of the time that I chose (1961) with the best period bits that I could lay my hands on and up to date in as many other ways as possible.

Thanks for that, Gordon it sounds as if you'll have a very pleasant and usefully lively GT after all that work!

Trimming a GT

Dave Milner puts us all to shame with the work he manages to put in on his Rochdales, despite work and family demands. His Rochdale-chassis GT, which languished for so long in Northern Ireland and came so close to being broken on several occasions, is now coming together and Dave has delighted me by finally settling on a 100E engine to power the car, as original.

He asked on the club website forum recently whether Rochdale ever offered the GT with interior trim; it's a question that deserves wider airing. I knew that Rochdale never offered anything, but doublechecking my records turned up one surprise. Interestingly, the major London distributors Super Accessories offered a Headlining and Trimming Kit specifically for the Rochdale GT for £13, saying

Having seen so many GT saloons spoilt by poor internal finish, we have developed a complete trimming kit comprising: -

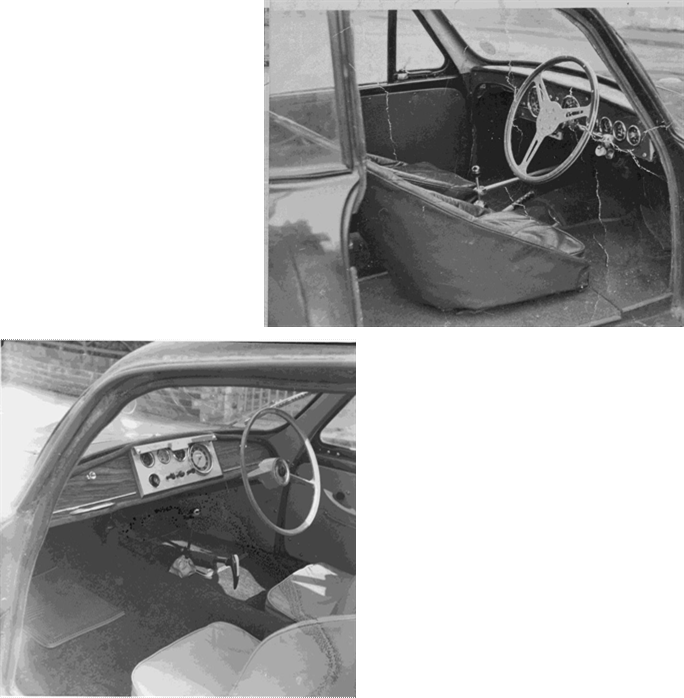

Ready to fit Headlining (should be fitted before bodyshell is mounted)

Windscreen Pillar Trim

Door panels covered in leathercloth

Parcels shelf for rear


Screws and screwcups

Leathercloth for odd trimming

Colours: Grey headlining with Blue or Dove Grey leathercloth

To the best of my knowledge I've never seen a GT with this trim kit, though quite a few surviving GTs have had headlining neatly installed in the past. I do have some nice photos of period-trimmed GTs, some really impressive. Sadly, none of these GTs survive, as far as we know and all are different. Most of the more ambitious trimmers of the time opted for a full-width dashboard with the instruments ahead of the driver: there was room for this on top of the moulded dash panel and glove pockets that came with the shell. Cutting the dash panel out was a mistake that many subsequent owners have made doing so weakens the shell and is definitely not advisable. At least one of the cars pictured retained the moulded glove pockets behind a neat full width wooden dash panel with hinged lids over the pockets.

As for seats, everything from cut-down Ford Pop to contemporary bucket seats were used and most using Ford Pop chassis fitted seat pans set into the chassis members to lower the floor and give more headroom.

In the photo of EBV 358, complete with lady driver, it's just possible to make out the standard Rochdale dash layout with the instruments in the centre and untrimmed glassfibre windscreen pillars. The car has the flat floor with low, but wide, seats and as can be seen, headroom even for the lady driver is minimal! Also visible is an old-type electric windscreen wiper motor simply mounted through the dash in front of the steering wheel effective, but not very pretty. These motors, as fitted to quite a few 1930s-50s cars, were operated by a switch on the casing, so needed to be accessible. One modern item on this GT is separate flashing indicators, and these appear to have a column switch, below the wiper motor.

KS 101 which, like EBV 358, was photographed in Rochdale and was a car well known to the factory goes to the opposite extreme and I would be interested to know what chassis was under this car. It's certainly not the Ford chassis, as the body flange just inboard of the doors that bolts to the top of the chassis has been cut away and the car has neat, flat floors two or three inches lower than the normal position, with a commensurately higher transmission tunnel. Neat period accessory seats are used and the interior is very neatly carpeted. Door, footwell side and screen side panels appear to be glossy so are probably painted there is no rough glassfibre visible anywhere and a full-width varnished wood dashboard is fitted.


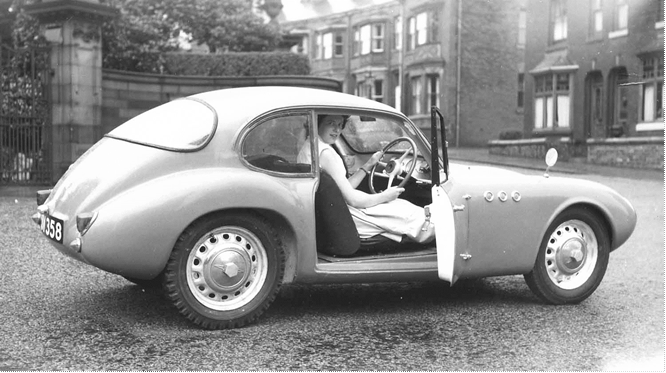

EVB 358 Note minimal headroom, even with lady driver

KS 101 - A highly specified car

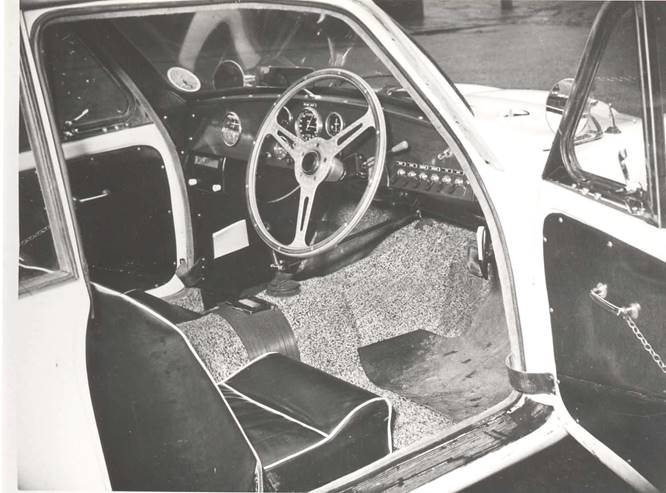

No expense has been spared on this car which has a lovely wood and alloy steering wheel and a valve radio set over on the far side. Sturdy leather door check straps are fitted, as are stainless steel door window frames from the Morris 1000 Traveller and chrome interior door handles with chains to the interior door handles. The Ford Pop umbrella handbrake is neatly tucked in on the far right under the dash, where hopefully you won't catch your knee on it when getting out (a common problem on early P4 Rovers). There's a smart chromed remote gear linkage, a good set of centrally-mounted instruments, a column switch for the indicators and a bank of minor switches to the right of the steering column. There's even an ashtray set into the transmission tunnel!

NBN 115 was another high-spec car, but not to the same extent as KS 101. This one is on the Ford Pop chassis with standard floors and painted door tops. Nice touches are the wacky bucket seats, chromed remote gearchange, centrally-mounted handbrake, wood/alloy steering wheel and comprehensive instrumentation in a dashboard that has been built out and bears no resemblance to the standard offering. Flat rexine-covered door trims have been fitted and it looks as if a white headlining has been fitted and brought down the screen pillars to the top of the dashboard. Furflex door seals are fitted, too.

HG 6688 is a very well thought out, attractive and relatively inexpensive interpretation. It has a late 103E steering wheel and its instruments which appear to include the Ford speedo and fuel gauge with an ammeter and a dual oil/water gauge added are mounted to a board set over the standard moulding and hooded, so that illumination is provided from a bulb behind the curved hood. On either side wood (or more likely Formica!) glove box lids are fitted, with a grab handle for the passenger, very tidy carpeting with rubber heel mats and colour-coordinated seats, door trims, footwell side trims and screen pillar trims. A gutter has been fitted to the outside of the door opening as well as Furflex door seals. Again, a remote control gear linkage is used, this time a simpler painted one but neatly set off with a gaiter matching the trim. An internal door handle is fitted with below it a trimmed door pull strap. The Ford handbrake is used, but this time mounted low down to the left of the footwell to avoid the knee risk. The only thing I haven't managed to identify is the round black blob immediately above the internal door handle.

I hope these give some inspiration to everyone contemplating how to trim a GT!


Lost GTs resurface

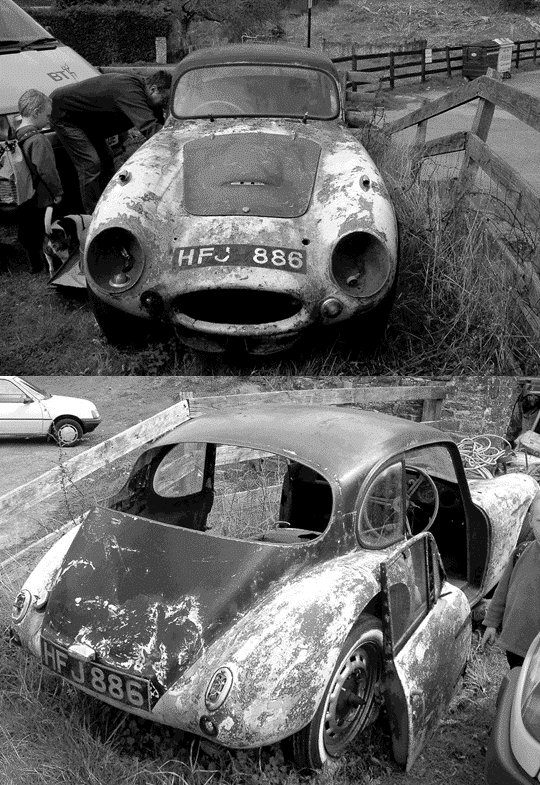

I hadn't heard from HFJ 886 since it was rescued by Chris Lane 10 years ago and handed over to his friend C Bent. I suspect it's still in the same ownership, as it was spotted in the Forest of Dean last year by Turner owner Nigel. At first glance, it appears little better than 10 years ago, apart from the removal of the ugly pair of spotlamps that had been mounted on top of the nose, but a closer look at the rear view shows shiny silver/red wheel and hub that suggest the running gear may well have been nicely restored, just (!) leaving the body and interior to do.


Also in the Forest of Dean (a great haven for Specials!) is Granville Phillips GT, a very high spec car that, back in 1958, featured in Rochdale Motor Panels adverts for the GT. Granville found the car covered in snow lying in the corner of a field about 20 years ago and has since restored it twice, having had several setbacks along the way. I don't have the full spec sheet to hand for the car, but recall it had a Willment inlet-over-exhaust cylinder head with twin SU carburettors, independent front suspension, telescopic dampers and plenty more.

The car now runs and drives but still needs spraying and a complete interior fitting out. It comes with lots of spares including a wooden dashboard and, if the work has continued to the same high standard as I saw when I visited Granville about 15 years ago, I'd say it's worth the £2000 he's asking. If you think that's a lot, bear in mind that the last Willment head seen, an incomplete kit on sale at Beaulieu last September, was priced at £1500. And I don't want to hear that this historic Rochdale has been robbed for some jumped-up Lotus Six replica

If you're interested, give Granville a ring on 01989 768369 or 07917 152065 and do check that the Willment engine is still in the car, as he didn't mention it when he rang to say he was selling. Without that, sadly, it's probably not worth the asking price.

Worlds most valuable GT

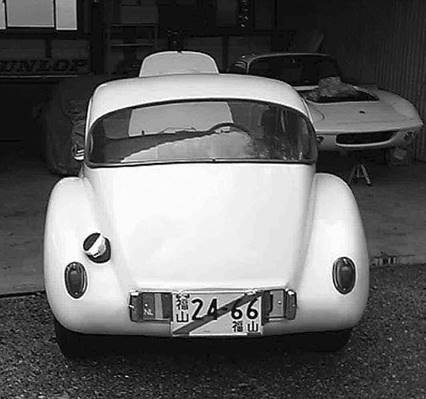

The GT that made a record price on ebay last year, heading to Japan from USA, has rather surprisingly changed ownership within Japan but I'm delighted to welcome new owner Hideki Saka of Hiroshima. As the photograph shows, Hideki is a Lotus fan with a couple of fine Elans already in his collection. Hideki is very keen to get the GT into 100% correct order and has asked for help in reinstating the original number plate light plinth. At some time in its history, which included being exported from UK to Holland in the 1970s where it was restored and maintained in superb condition for decades by Bert Tressel, the car lost its original rear number plate light and was fitted with lights at each end of the plate.

This is not an uncommon problem for GTs as, without bumpers, the number plate light is the most prominent part at the rear of the car and any rear impact tends to push the light and a section of glassfibre behind it into the boot. I suspect that, when this car was restored in Holland, the plinth and light had been broken in such a way and had disappeared, so the restorer glassed in the hole to match the surrounding profile then wondered where to put number plate illumination

Thankfully, Dave Milner has come to the rescue, tidied up the plinth area of his GT and taken a splash moulding off it. He's kindly promised me a moulding of the section too, as the same problem has befallen my own GT at some time in the 35 years it's been off the road thanks, Dave!


School Project GT

Club member and Olympic driver Les Brown spends his working hours teaching IT in a secondary school and deserves all our admiration for investing a good deal of spare time into teaching the boys a bit of classic car restoration, using a Rochdale GT as the subject!

Les and the boys have been making steady progress over the last year or two and at last the project is really come together, with the body gleaming in hand-brushed coach enamel. This GT is on a modified Triumph Herald chassis, fitted (just to make life difficult?) with a Morris Minor engine and looks likely to be a very fine car when finished well done Les and all the team.

Les remarks:

"I've been concentrating on the GT lately, with time running out to finish it before retirement. Seats are in, steering's working, paint's mostly done (coach enamel - bright red) brakes are on, carburettors next and I ain't looking forward to all those electrics. Kids keep on about making Capesthorne but I have my doubts!"

Surely not, Les we're confident you'll make it! I was terrified by electrics too before I bought my first GT. It had no wiring loom in it, so I bought several big rolls of wire and a load of connectors from my local accessory shop and set about wiring it up. It's quite simple really when you do it that way, because you can deal with each item in turn, take a wire from the light or whatever to the switch (and another to earth), then power to the switch from the appropriate side of the fuse box, etc.

Try to route the wires together and, when they're all done, bind them together neatly with black insulating tape or self-amalgamating tape (see note below Ed). In an ideal world you'd use the same colour-coding as other cars but on such a simple car you can get away with just using three colours blue for lighting, red for live, black for earth or if you've access to more colours, go for the standard pattern of black-earth, brown-live, yellow-charging, blue-headlights, white-ignitioncontrolled live wires. Taking a wiring loom out of another car and stripping it for the exact correct colours is another option, but very labour-intensive and fraught with problems such as damaged wires or ones that are too short. Good luck, Les!

Note: I have done a lot of wiring recently and wouldn't recommend either of these, Malcolm. It's better to use the correct PVC harness tape, which can look really smart if done neatly. It does not get sticky like insulating tape and is much easier to apply than self-amalgamating tape, which needs real skill. Alternatively, use split convoluted sleeving to cover bundles of wires, as applying tape of any sort is a slow job. Braided sleeving gives a period look but needs planning. If you use crimped connectors use a proper ratchet crimping tool (about £20) not the Mickymouse sort usually offered. If you use bullet connectors for authenticity always solder the ends rather than poking the wires in and hoping for a miracle. Also, smear a little copper grease on the bullets before fitting to combat corrosion. Heatshrink tubing is also very useful for covering soldered joints etc. A heat gun is necessary for this; I have seen hair driers suggested for this job though I wouldn't want to put my head under a hairdryer that can shrink tubing!!!

All this stuff and lots more can be obtained from, whose online shop is a doddle to use. Usual disclaimer. Alan Farrer

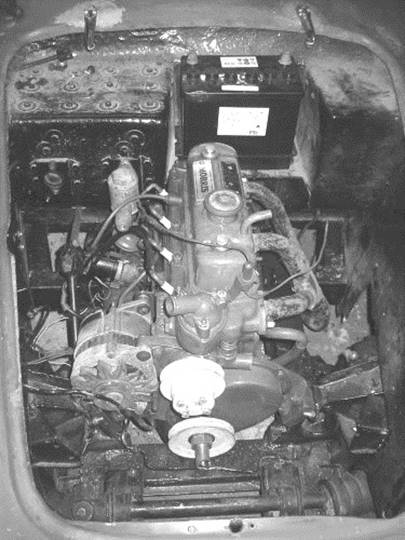

The MM engine in Les Browns GT





Sandy Hamilton

I had hoped that the April 2004 consultation on inspection procedures was in the past but the September 2005 publication of responses to it seems to have caused confusion amongst some enthusiasts and certain of the specialist press. The following comments are intended to lay to rest the fears and anxieties that some of the scare-mongering stories have generated amongst those inclined to believe in conspiracy theories.

The original consultation was a ten-year review of procedures first introduced in 1994 following earlier or consolidating legislation. This had included establishment of Single Vehicle Approval (SVA) testing for imported and amateur/kit-built vehicles. In essence, the consultation wanted to establish whether the procedures had been effective, were they working properly or did they need improvement and/or amendment. If they were considered satisfactory that was OK, since there was no hidden agenda to sneak yet more restrictions upon us.

Replies were to be submitted by July 2004 and, following digestion of the 431 individual responses, DVLA published their analysis in September 2005. It was at this point that some parties began to huff and puff and to circulate stories that any modification (even changing seats or brakes) would render a vehicle liable to an SVA test, removal of historic status (if applicable) and re-registration with a 'Q' mark - or worse - removal from the road.

Cutting through the hysteria it seems that those most concerned had missed the introduction of the new procedures in 1994 or, if they had been aware, had not fully understood the nature of the 2004 review consultation. Their fears sprang from selectively reading the 'recommendations' that were attached to each review category. These were in fact a summary of respondents views expressed in their replies, and were not those necessarily supported by DVLA. Indeed these recommendations were to be subject to further analysis and review and only those that had merit, or could be cost-effectively introduced, would be subject to formal proposals and further consultation.

Having spoken to the relevant departments at DVLA I am assured that no recommendations are being acted upon that would give rise to some of the wilder theories about extension of SVA testing, withdrawal of registration marks, or restrictions on use, or the ability to undertake vehicle modifications. DVLA has no desire to be informed when you have changed to alloy wheels, added spotlights, new seats, disc brakes etc. The only changes that you are obliged to inform are those that are annotated on Section 7 of the V5C document and that affect identification (personal and vehicle) and have potential VED revenue implications.

A caution is that unregistered vehicles built from a variety of spare parts ('rebuilt classics') may need to obtain certification as to the age of components and to obtain confirmation from a recognized club prior to being allocated an appropriate age-related mark. In those cases a radical departure from the original specification may require a DVLA inspection to establish how much of the original design is retained. The principal category potentially affected would appear to be extreme customisation where, for example, 'chopping and channelling', changes to design of suspension and steering so radically affect the appearance that the vehicle no longer resembles the original outline or style. For avoidance of doubt the above is a summary of existing requirements since 1994 and is not new. Very if any few of 'our' vehicles are likely to be affected by this process and any vehicle in possession of a valid logbook (VSNSC) does not require to follow it.

Rest assured that FBHVC will continue to monitor these consultations to ensure that any action that may follow does not adversely affect our movement. In the meantime continue to attach furry dice to your vehicles without fear that cameras will record your crime and impose a penalty for non-reporting!

MOT Test Procedures

We continue to receive comments that the computerised MOT test procedures have given rise to new restrictions or removal of data, such as obsolete makes/models. In most cases DVLA is blamed for these problems. While their database is not perfect, upon examination we have found that the problems are caused by lack of relevant technical information on the VOSA database or a test examiner's unfamiliarity with the newly installed system, e.g. ability to cancel/re-input incorrect data. We repeat our advice to double-check the vehicle description and numbers to ensure that what the tester records is on the V5C. If not correct, make sure the changes are done before your test.

Much adverse comment has come from the so-called 'abolition' of the free re-test. That animal never really existed but grew from a practice that, at best, was customer-service related but more likely was 'tester-effort' biased. VOSA has recognised there is a genuine requirement for rectification of modest faults without incurring a full fee and is taking steps to put this in place. It is up to each Testing Station to decide the level of fee, up to a maximum, in this category.

We repeat our advice that owners should undertake a preMoT inspection of their vehicles rather than continue the habit of many of using the MoT test to tell you what servicing work is needed. This could become an expensive habit if not corrected!

Renewal of Car Tax (VED)

Finally, a piece of welcome and up-to-date news. It is now possible to renew your VIED disc through the Electronic Vehicle Licencing (EVL) facility that has just been announced following a successful pilot programme in several areas.

This can be done via the telephone at 0870 850 4444 or by logging on to All keepers of vehicles less than three years old can use ELV while those subject to an MoT test will need to have a computerised MoT certificate. (It is anticipated that all MoT testing stations will be operational by the end of March 2006 so all licensed vehicles should be able to use ELV by 2007). There is no need to present paper insurance or MoT certificates as the process is handled electronically; the VED disc will be despatched by post and received within 3-4 days.

Access to a phone or computer will enable -a keeper to apply for a VED wherever they may be, at home or abroad, 24 hours per day and seven days per week. SORN may also be declared electronically so the new ELV procedures should answer the vast majority of concerns we have heard from members who travel both frequently or extensively. As always, we welcome feedback from members who have had experience of ELV whether or not it is favourable.


FBHVC urges all owners of licensed historic vehicles to use them on 23 April - every year. This will be a truly national annual event and one that all enthusiasts can take part in, wherever they live. It's absolutely free of entry forms, fees and red tape.

It's not necessary for owners to go to a show or to take part in an event, FBHVC just wants owners to get their vehicles out so they can be seen by the public. If the vehicle is suitable, it could be used instead of modern transport for daily activity. Owners could use them to go to work take a trip to the seaside, enjoy a day out in the country, visit a stately home or just go shopping.

For those with unlicensed, older, larger or slower vehicles for which such use would be impossible, impractical or inappropriate, owners could at least get them out and park them on the drive where they can be seen.

FBHVC exists to uphold the freedom to use old vehicles. Drive It Day is part of an ongoing campaign to raise public awareness of the historic vehicle movement. After all, Tony Beadle (the committee member who came up with the idea) asks, what's the point in fighting for a freedom if we don't make the best possible use of it?




Most Rochdale owners will be familiar with the fact that there were two major variations with the Olympic, the phase 1 and the phase 2. Some will even have heard of a phase 1. and assume that this was an intermediate model. This is a bit misleading as such a model never officially existed. I will attempt to explain my understanding of the models produced and the major differences between them. Of course, the phase 1 was never officially called a phase 1 until the phase 2 had been introduced.

The first production shells were noticeably different from subsequent Phase 1s in the following respects. The bonnet was smaller, being only 30.5" at its widest point compared to 34.5". The shape of the rear edge of the bonnet was also different, being more or less straight rather than following the curve of the windscreen. This left no space for a heater intake opening. The photo in the Motor Road Test indicates this quite clearly. On the early shells the front sub-frame is also different in that the B series engine is mounted from the inner wing panels with a bonded in tubular framework and not from the sub-frame. A number of the internal mouldings are slightly different. Very few of these early shells were produced, but at least five are known to have survived. Three versions were available for Riley/Wolseley, Morris Minor or Ford 10 components.

After the factory fire it was necessary to remake the moulds and I have always assumed that it was at this point that point that the changes were made to produce the phase 1 shell that most of us are familiar with. The front sub-frame will vary slightly, depending on whether it was supplied for Riley/Wolseley or Morris Minor components, as the steering rack is different. Initially, all engine mounts were from the inner wing panels, although at some point fairly early on the B series engines were mounted from the front sub-frame.

Two different kits were available, the Riley version at £670 and the Morris Minor version at £598. The Ford 105E engine was an option with the Minor kit at no extra cost. Incidentally, when the 105E engine was supplied the mountings from the inner wing panels were retained. This was no doubt due to the fact that the Ford mountings were half way along the side of the block and not at the front as with the BMC engines.

During the latter part of 1962 a revised version of the Olympic was under development. This was introduced to the public at the Racing Car Show in January 1963. Substantial modifications were made, to the extent that very few major components or mouldings are interchangeable. However, as the external silhouette remained the same some part panel mouldings can be used to repair either phases.

The most noticeable of these changes externally was a larger bonnet, opening rear hatch and cut away rear panel to allow mounting of a spare wheel underneath. The changes however went much further and consisted of a revised front sub-frame to suit the Triumph based suspension, fully ducted radiator and open transmission tunnel rather than the full length undertray of the phase 1. The rear suspension also changed to tapering box section trailing arms and full width panhard rod to locate the rear axle. Internally the mouldings were modified with a new dashboard and thinner doors giving increased interior width. The two small rear seats also disappeared being replaced by a flatter load area.

The Phase 2 with 1500cc Ford engine sold for £755, with the GT engine a £40 extra. Initially the phase 1 kit could still be obtained as a cheaper alternative. However, there were increasing supply problems with BMC components and before long the phase 1 would only be available as a body/chassis unit at a cost of £256.

Whilst the phase 2 was under development one or two phase 1s were either supplied or retro fitted with an opening hatch by the factory. This process has continued in latter years and a number of phase 1 shells have been subsequently converted.

By the mid 1960s Harry and Frank had obviously decided that the Phase 1 moulds were not good enough to use. Hence if a customer particularly wanted to use Morris or Riley components he would be supplied with what was essentially a Phase 2 shell, with Phase 2 rear suspension, but different front sub-frame to take the BMC components. The cost for this option was £271. By this time production of the Olympic had slowed down to a trickle and the literature was not reprinted, but merely amended by hand. The cost for the phase 2 kit had increased to £780 and the Ford 1500 engine replaced by the 1600 cross flow engine.

The above is my own understanding of the Olympic variations produced by Rochdale Motor Panels, but I stand to be corrected if anyone knows differently.

Derek Bentley


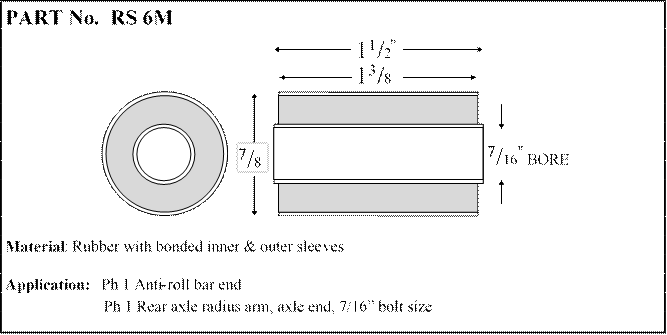

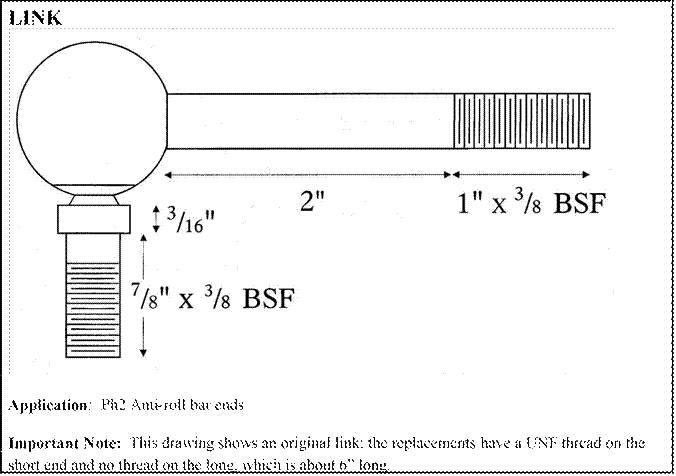

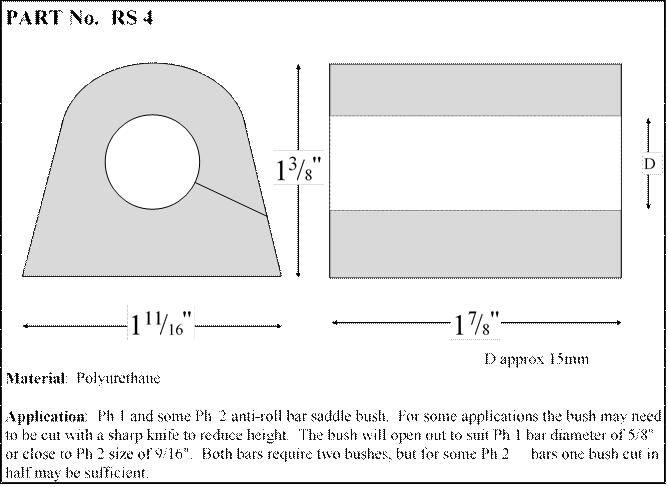

Material: Polyurethane

Application: Ph 1 Panhard rod axle end; Top shock absorber

Ph 2 Panhard rod body end; Rear shock absorber lower; Anti-roll bar link upper

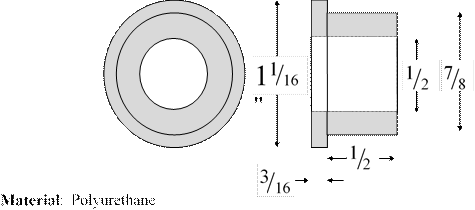

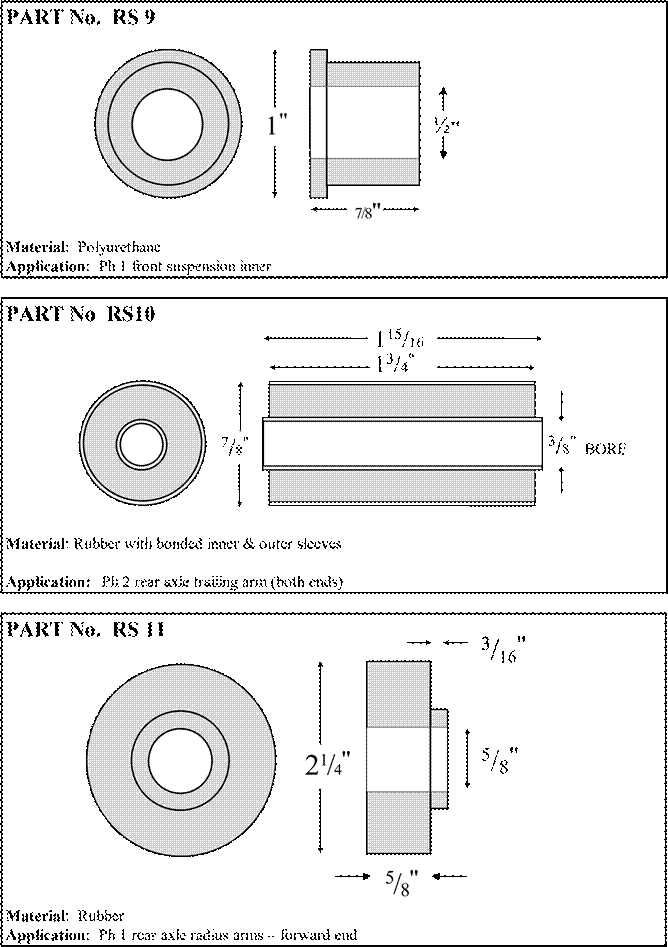

Application: Ph 2 front suspension pivot


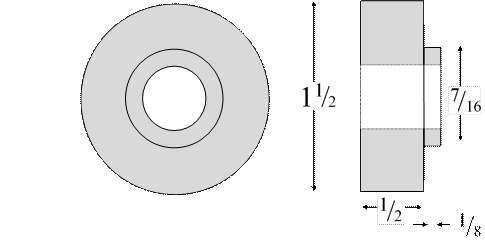

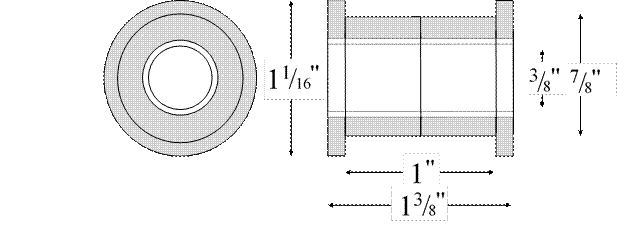

Material: Polyurethane with removable stainless steel sleeve

Application: Ph 2 Panhard rod axle end

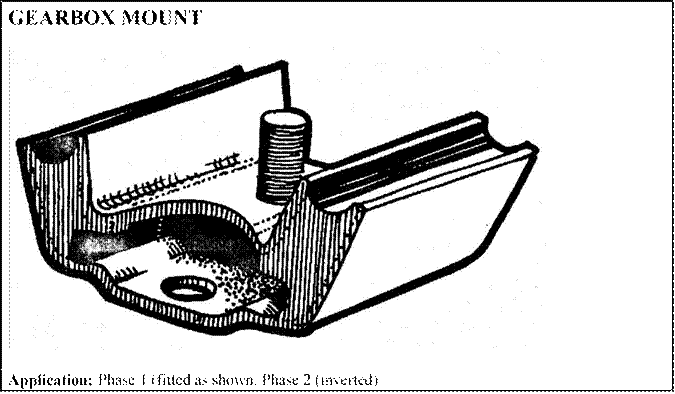

Copyright © Rochdale Owners Club
Last Update
